NEW: Quick Change Jaw Chucks

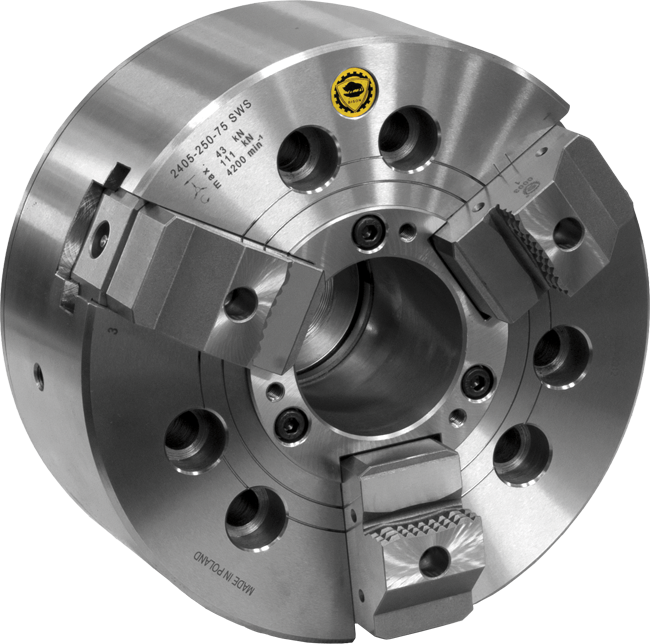

Adapted for short series mass production the BISON Power Chuck with Quick Change Jaw System 2405-250 SWS was designed for turning and grinding operations. A quick change jaw system allows to reduce machine changeover time to a few seconds! The jaws are capable of both internal and external clamping of the workpiece, although there is also a possibility of making the top jaws adapted to different clamping diameters. Moreover, a special insert allows to convert a through-hole chuck into a non through-hole.

The chuck size of 250 mm and its weight of 34 kg (without top jaws) has the technical specifications as indicated below:

Max. wedge stroke: 27 mm
Jaw stroke: 6 mm
Max. draw bar pull: 43 kN
Max. total gripping force: 111 kN
Max. speed: 4200 min-1
Moment of interia: 0,31 kgm2
The Quick Change Jaw Chucks will be on display at the upcoming trade shows!

For more details on the Power Chucks with Quick Change Jaw System contact us at sales@bison-bial.com
