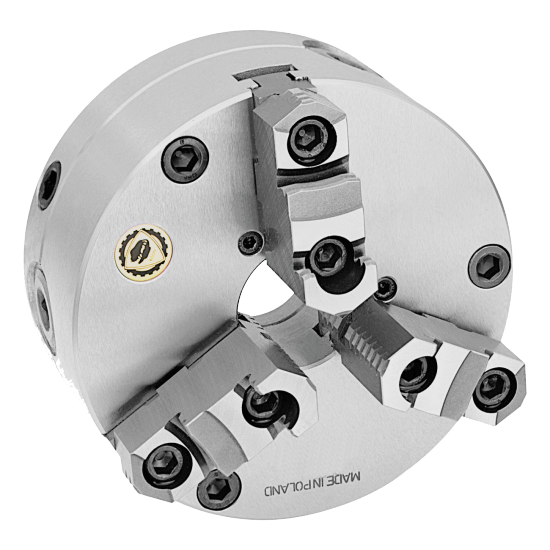

3565-16"

Self-Centering Chuck With Fine Adjustment

Mfr Part Number: 353565080000
Part number: 7-866-1600
Size: 400 mm (16")
Type Of Jaws: 2-Piece Jaws
Style Of Jaws: Hard 2-piece Jaws
Body Material: Steel
Mounting Type: Plain Back - Front Mounting
Number Of Jaws: 3
Precision Class: Precision Chuck with Fine Adjustment
Through Hole: YES
Through Hole Size [mm]: 136
Unit Of Measure: EA
Find Distributor

Item page Specs page
Safety Wrench
Pinion
Locking Half-Ring
Hard Top Jaws
Hard Master Jaws
Sleeve Bearing
Scroll Plate
SET-TRU Screw
Screw 5/8" -11X1 1/4"-12.9
